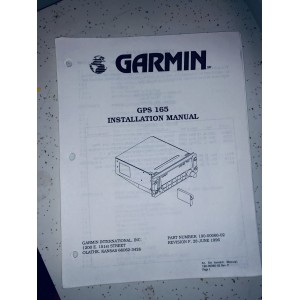

Garmin GPS 165 Installation Manual

Part Number: 190-00066-02

Revision F, 28 June 1996

Pages: 50

Table of Contents

Section 1: General Description

Section 2: Installation Considerations

Section 3: Installation Procedure

Section 4: Post Installation Configuration And Checkout Procedure

Section 5: Certification

Appendix A: Certification Documents

Appendix B: Connector Changes

List of Illustrations

Figure

1-1 Pinout Definition, 37 Pin DSUB

1-2 Pinout Definition, 26 Pin HD-DSUB

1-3 Interconnected Schematic

2-1 Antenna Installation Considerations

2-2 GPS Installation Considerations

2-3 Switch / Annunciator Layout

3-1 Remove Battery Pack Assembly

3-2 GA 56 Antenna Installation

3-3 Flange Mount GA 56 Antenna Installation

3-4 Coax Cable Installation

3-5 GPS 165 Face Dimensions

3-6 Aviation Rack Installation

NO RETURN is accepted.

All printed manuals located in the USA.

Contact us if you want custom work at great prices!

Manual is used and has wear and tear. Pages may be missing.

The Manual is old and likely not the most current revision.

This is a paper manual.

Garmin GPS 165 PN 190-00066-02 Printed Manuals

Qty

$19.95
