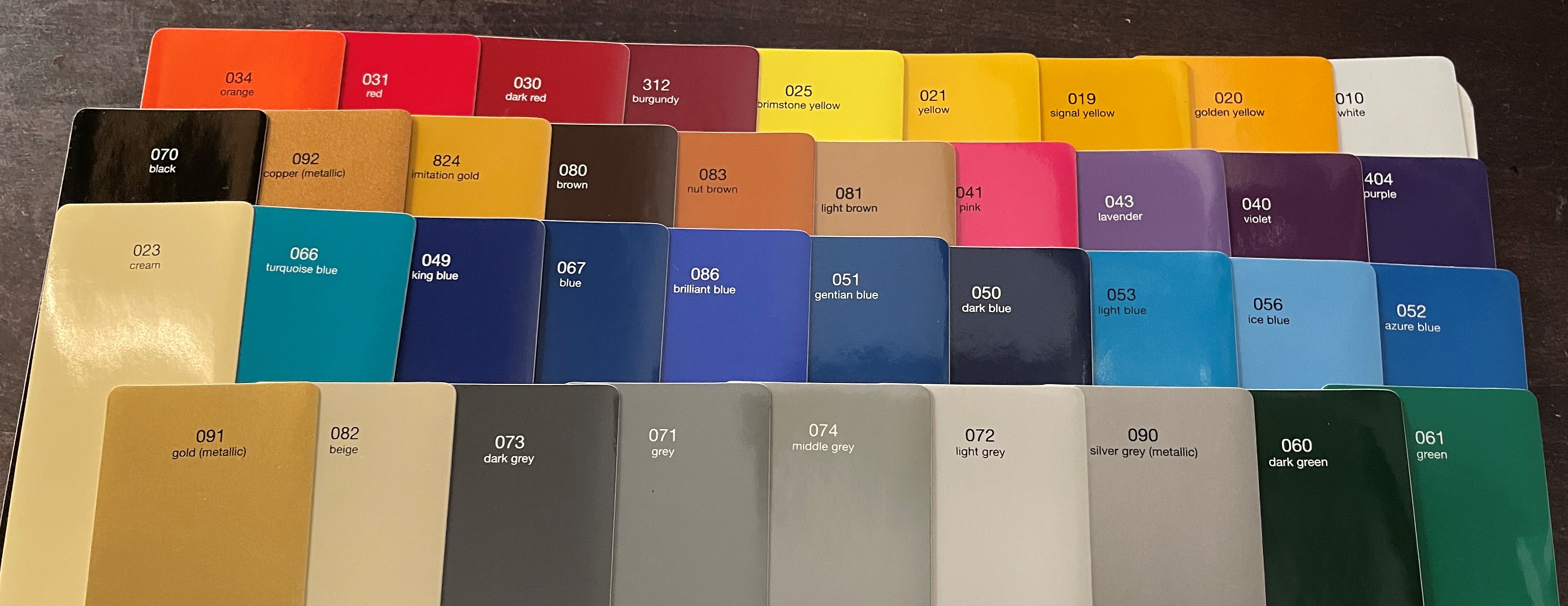

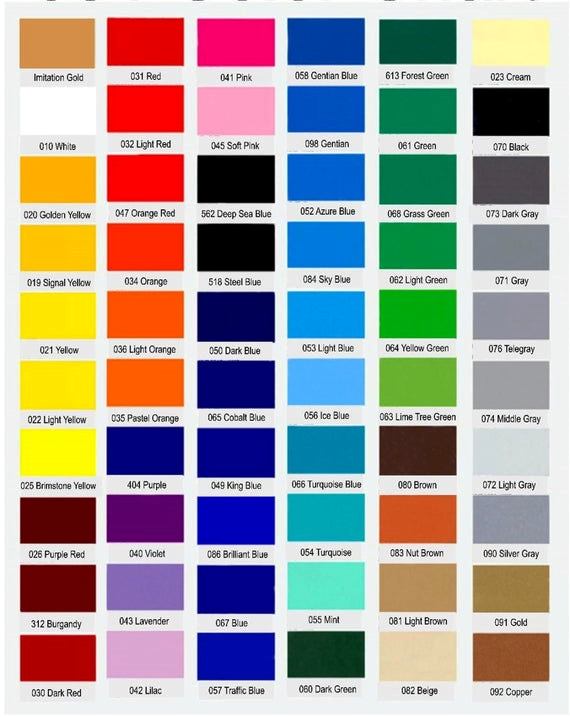

Color Charts

Technical Data

Thickness (without liner and adhesive) 2.5-mil

Dimensional Stability (FINAT TM-14) Adhered to steel, no shrinkage in cross direction; In length, <.016.

Temperature Resistance Adhered to aluminum, -40°F to +176°F, no variation.

Fire Behavior (DIN 75200)

Fire Rating Adhered to steel, self-extinguishing ASTM E 84-07 Class “A.”

Adhesive Power (FINAT TM-1, after 24 h, average) Adhered to stainless steel: 4.1 lb./in

Tensile Strength (DIN EN ISO 527) Along: Min. 19 MPa Across: Min. 19 MPa

Elongation at Break (DIN EN ISO 527) Along: Min. 130% Across: Min. 150%

Seawaterability (DIN 50 021) Adhered to aluminum, after 100h/73°F, no variation.

Shelf Life (68°F/50% relative humidity) 2 years

Minimum Life Expectancy (based on accepted application procedures on vertical surfaces)

6 years - colors/transparent

4 years - metallic

3 yearsbrilliant blue

Minimum Application Temperature 46°F

black is the base,

accent is the golden yellow.
